South Africa Johannesburg manganese ore mobile mobile screening

The project is located in Johannesburg, South Africa s largest city, with an open-pit mining programme. Processing materials : manganese ore ( 40 % grade ), yield : 200-250MTPH, feed particle size : < 720mm, discharge particle size : 0-40mm.

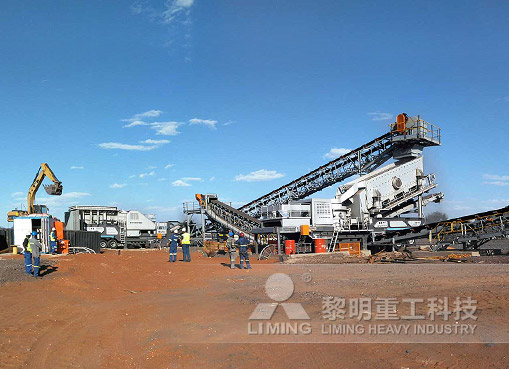

According to the site conditions, our engineers configured two K series tire mobile stations-rough crushing mobile station + medium and fine crushing screening mobile station. The materials were broken by excavator → feeder → jaw crusher → screening → HP cone crushing, and the processing process was completed

Engineers configured KE860-1 coarse crushing mobile station and KH300-2 fine crushing screening mobile station for customers. When the large stone enters the silo, it enters the PEW860 European version of the jaw through the GZD1300 × 4900 vibrating feeder to break the initial crushing, and then the belt conveyor sends the stone into the HPT300 hydraulic cone to break. The crushed stone is transported by the belt conveyor to the 3YZS1860 vibrating screen for screening, and the finished material is screened
