The powerful single-cylinder hydraulic cone crusher HST for crushing hard rocks: intelligent and efficient modern crushing equipment.

The HST single-cylinder hydraulic cone crusher features a simple and streamlined design, compact size, and light weight, making it a modern and intelligent piece of equipment. Suitable for medium, fine, and ultra-fine crushing, it is characterized by durability, ease of operation, convenient maintenance, and reliable performance, representing an outstanding achievement in the history of SBM's industrial development.

More examples of hard rock crushing equipment

Design Concept

The HST single-cylinder hydraulic cone crusher uses the principle of multi-layer crushing for efficient material crushing. To ensure intelligent control, the engineers implemented Internet of Things (IoT) technology, equipping it with an electronic display for real-time monitoring of equipment operation, making operation more convenient and stable.

Design Advantages

1. Floating Main Shaft

The floating main shaft makes adjusting the discharge opening more convenient. The automatic control system allows for dynamic load adjustment, including automatic load adjustment and automatic discharge opening adjustment, maximizing crushing efficiency, flexibly adjusting the product particle size distribution, reducing human error, and saving production costs.

2. Steep conical movable cone

The steeper crushing cone reduces the influence of the moisture content of the raw ore on productivity. Due to the high throughput capacity, more crushing cycles and a better multi-layer crushing effect are achieved.

3. Liner plates with constant performance

The crushing chamber liner plates (crushing wall and mantle) show minimal performance fluctuations at the initial and final stages of operation, increasing overall productivity by approximately 15% and extending the service life of the liner plates by approximately 6%.

4. Star-shaped frame design

The star-shaped frame design is more advantageous in terms of stress distribution compared to the two-arm design, requiring less strong materials and providing greater durability and strength.

5. High-pressure hydraulic system

The hydraulic system uses a high-pressure design to meet low-pressure requirements. The equipment has a large pressure reserve during normal operation, which increases the reliability of the hydraulic system.

6. Imported air-cooled radiator

The use of an imported air-cooled radiator ensures reliable operation, saves space, and simplifies installation, preventing serious equipment failures caused by water shortage or leakage.

Examples of implemented projects

Iron ore processing project in Sanmenxia, Henan Province

Considering the high hardness of the iron ore, a complete production line was configured for the customer, including a PE600×900 jaw crusher, an HST160H hydraulic cone crusher, and a YZS1860 vibrating screen. Jaw crushers are used in the primary crushing stage to reduce pressure and wear in subsequent crushing stages. High-efficiency HST hydraulic cone crushers are used in the fine crushing stage, ensuring that the final product meets the customer's requirements for particle shape.

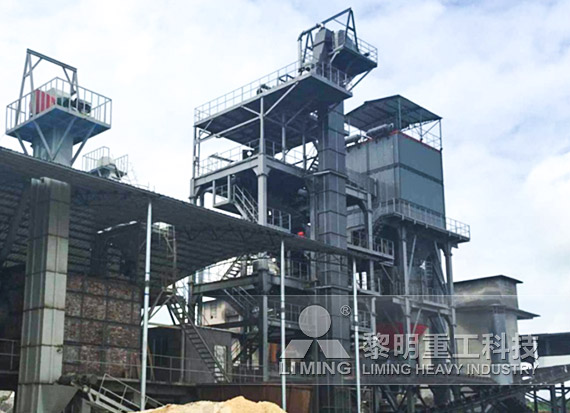

River pebble sand production project in Guiping, Guangxi Province

After carefully studying the conditions at the client's site and conducting thorough discussions with their engineers, two new sand production line projects were developed. The HST single-cylinder hydraulic cone crusher has a large feed opening size, low energy consumption, and high output, largely eliminating the need for primary crushing. The VSI5X sand-making machine produces cubical particles with excellent shape, reasonable particle size distribution, and adjustable fineness modulus, making it an ideal choice for artificial sand production and aggregate shaping.

The SBM HST single-cylinder hydraulic cone crusher, thanks to its intelligent and efficient features...With its excellent design concept, it is widely used in various crushing projects and has received high praise from customers.
