What configuration is needed for a 500t/h river pebble sand making production line? What is the process flow?

The configuration scheme for a 500-ton-per-hour river pebble sand production line is as follows:

Finished product size: 0-5mm high-quality sand

Equipment configuration: PEW860 European-style jaw crusher, HST250 single-cylinder cone crusher, VSI5X-1145 sand making machine

Consultation on the configuration scheme of a 500-ton-per-hour sand and gravel production line

Sand and gravel production line video introduction: Shibang Group's river pebble crushing and sand making solution

Process flow diagram is as follows:

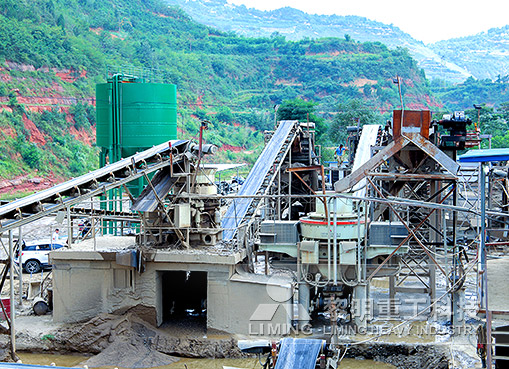

River pebble raw materials are first fed into the PEW860 for primary crushing. After primary crushing, the crushed raw materials enter the regulating hopper. Next, these raw materials are conveyed by belt conveyor to the single-cylinder hydraulic cone crusher HST250 for secondary crushing. The crushed raw materials again enter the regulating hopper and are then conveyed by belt conveyor to the vibrating screen for screening.

After screening, raw materials larger than 40mm are rejected, while raw materials smaller than 40mm enter the impact crusher VSI5X-1145 for fine crushing to produce 0-5mm high-quality sand. This is the entire processing flow.

Main Equipment Introduction:

PEW860 European Jaw Crusher: This is a hydraulic jaw crusher with a feed opening size of 860*1100mm. The feed size cannot exceed 720mm. The eccentric shaft speed is 240 rpm, and the designed processing capacity is 200-500 tons per hour. The machine weighs approximately 3.2 tons. Its hydraulic oil station and hydraulic lubrication system meet the needs of automated production.

HST250 Single-Cylinder Hydraulic Cone Crusher: This equipment integrates mechanical, hydraulic, electrical, automation, and intelligent control technologies. It can be widely used in medium, fine, and ultrafine crushing operations in industries such as metal and non-metal mining, cement, sand and gravel, and metallurgy. It features high crushing efficiency, low production cost, convenient maintenance and adjustment, and excellent particle shape of the crushed products.

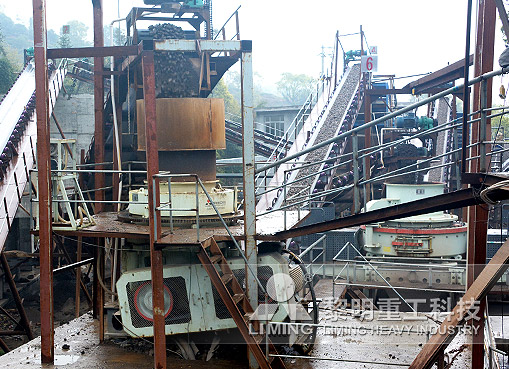

VSI5X-1145 Sand Making Machine: This equipment is commonly used to produce manufactured sand smaller than 5mm. The feed size requirement is less than 5cm. If the raw material is larger, a coarse crushing device needs to be installed beforehand. Combining "stone-on-stone" and "stone-on-iron" techniques, this method is suitable for various materials such as basalt, river pebbles, and bluestone.
